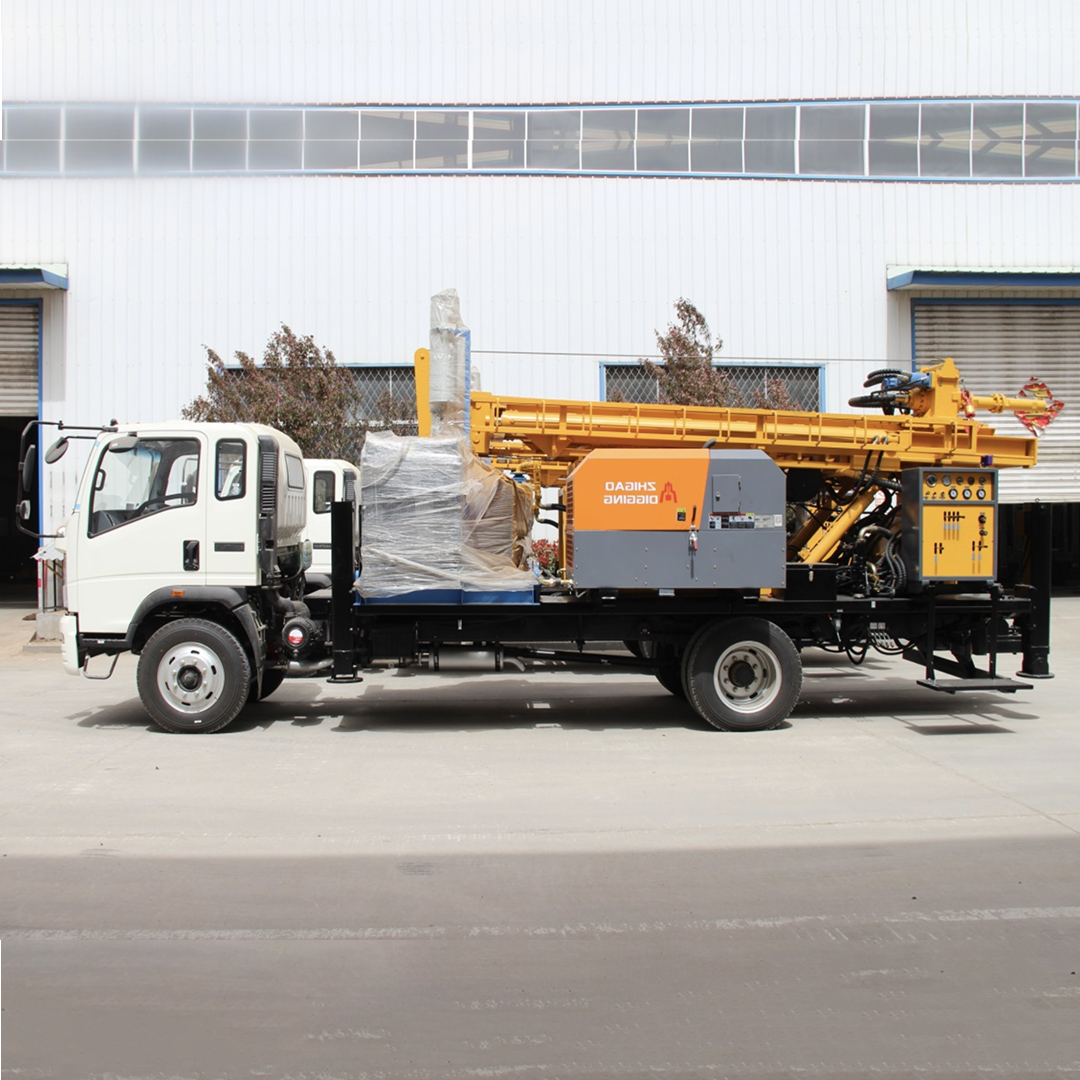

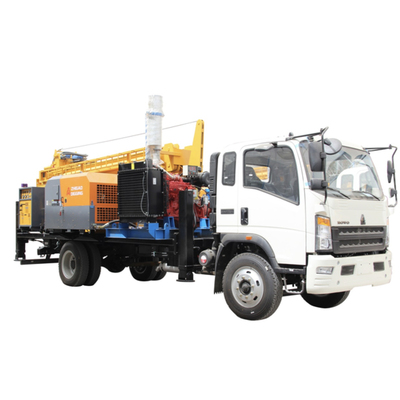

FYC350 is multi-functional truck mounted top head drilling rigwith the air compressor,mud pump are on the same truck chassis.Drillingtechnology can be mud positive circulation, DTH-hammer, air lift reversecirculation,Mud DTH-hammer.
1.FYC350 Multi function truck mounted water well riling rig is a new type, high efficiency and multi-function full hydraulic driig rig, which ismainly used for dirilig water wells, monitoring wells, geothermal alr-conditioning holes, grouting holes for hydropower cofferdams,anti-seepagegrouting holes for dams, groutig holes for foundation reinforcement, open-pit mining, anchoring, national defense engineering and other deep holedrilling processes.
2.The rig is equipped with high-power hydraulic motor, hydraulic boom, DTH hammer drilling, and large flow mud pump, which can realize mud driling
3. The mud pump and air compressor are all on the same car chassis, which is convenient and efficient, and the overall erformance is higher thanother types of drilling rigs.
FYC500 and above with foam pump.According to customers' requirements, independent diesel engine can be equipped as drilling power.customers' requirements, independent dieseengine can be equipped.
Product Parameter
| FYC350 Vehicle-mounted Water Well Drilling Rig Parameter List |
| The hole diameter(mm) | 140-325 | One-tine advance length(m) | 6.6 |
| Drilling depth(m) | 350 | Rig lifting force(T) | 22 |
| Equipped capacitor(KW) | Yuchai 92Kw or truck engine direct connection | Swing torque(N.m) | 6200-8500N.m |
| Drill pipe diameter(mm) | 89/102/114 | Swing speed(rpm) | 66-135 |
| Hoisting force of winch(T) | 1.5T | Using air pressure(MAP) | 1.7-3.4 |
| The penetration efficiency(m/h) | 15-35 | Air consumption(m³/min) | 17-36 |
| Air compressor (optional) |
| Discharge pressure(Bar) | 25 | Engine displacement(m/min) | 31 |
| Other Optional Parts |
| Foam pump | 14.5m3/min | Truck | Dongfeng/HOWo |
| Mud pump | BW250/450 | Multifunctional generator | Can generate electricity and can be welded (convenient for casing) |
