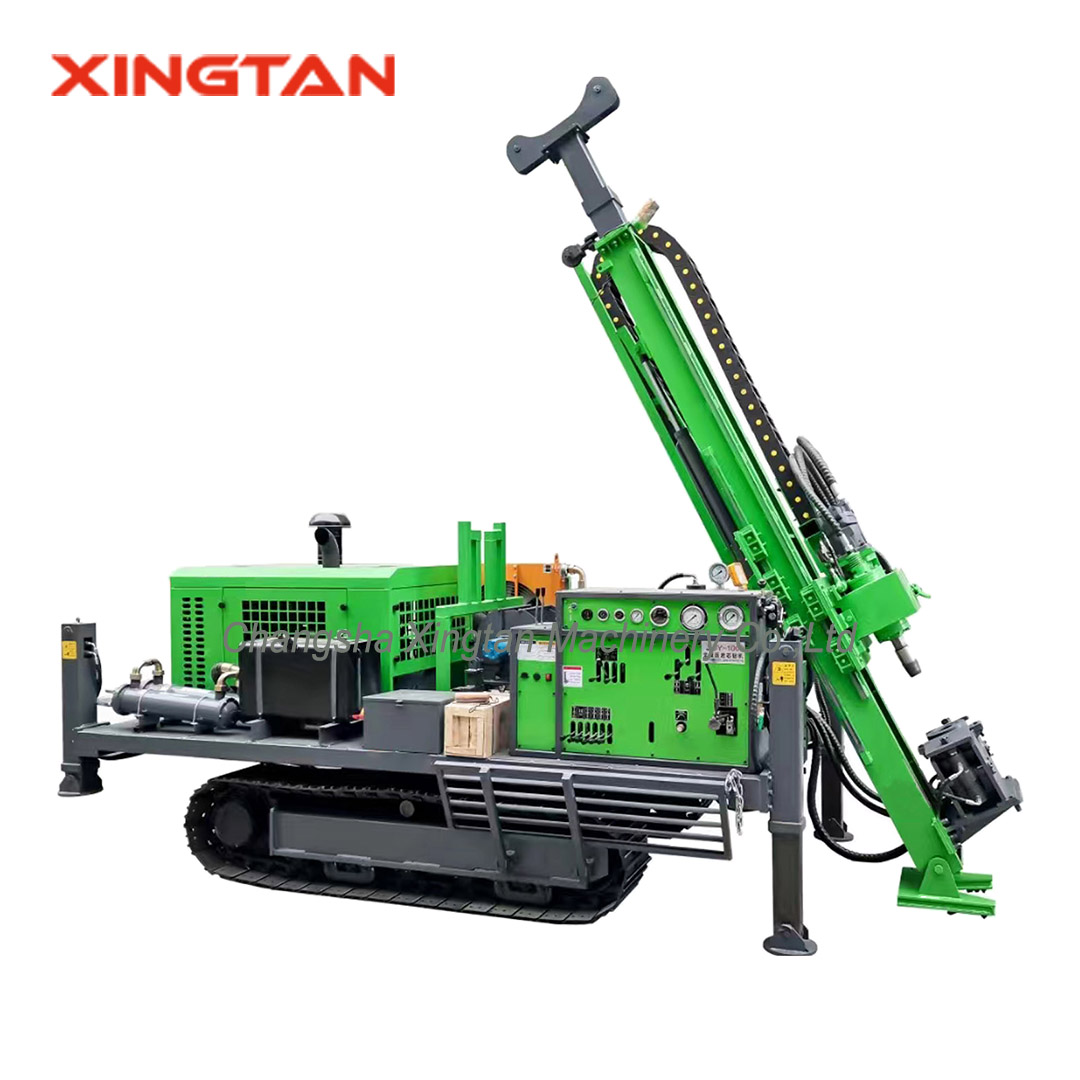

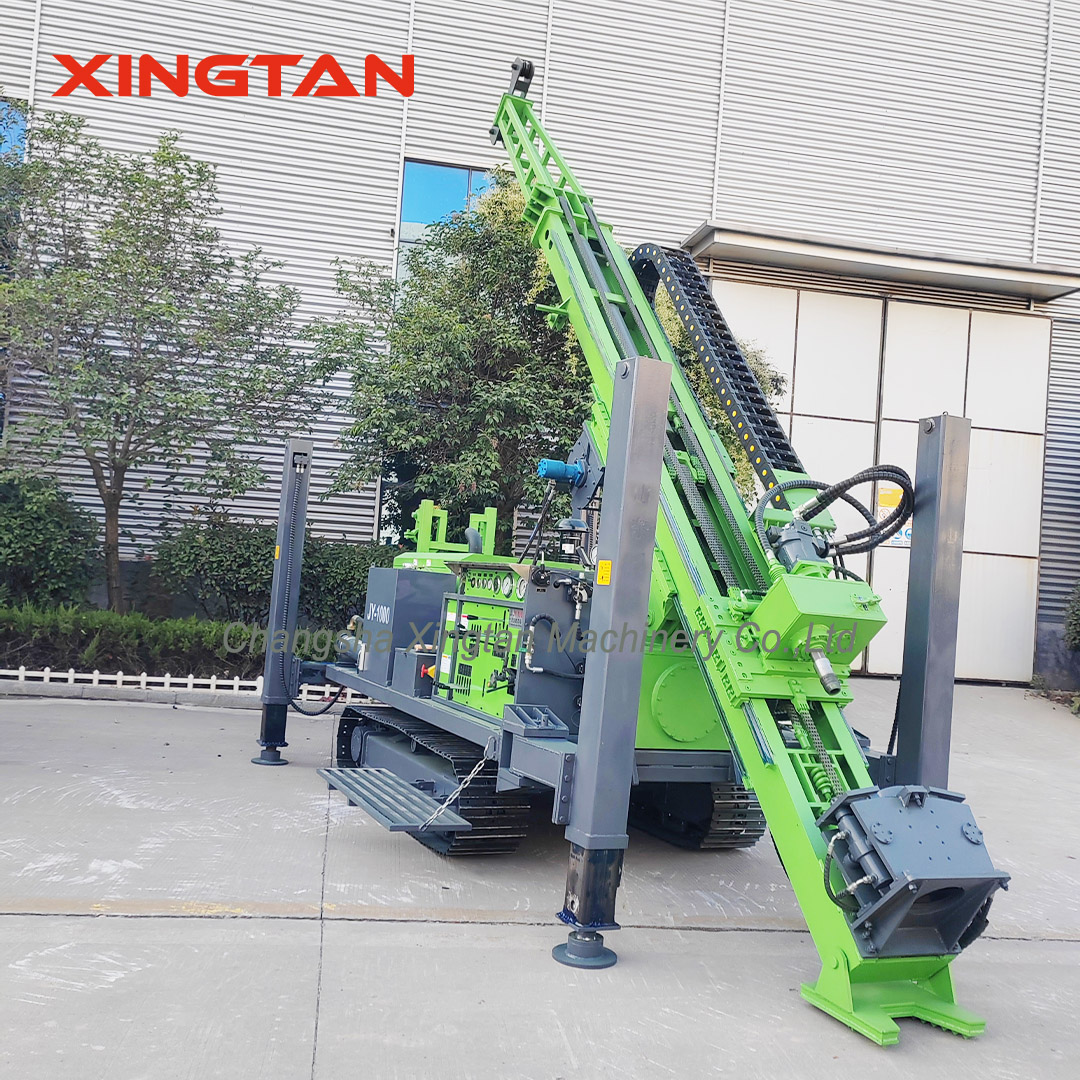

The JY-1000fully hydraulic core drilling rig is widely used in geological exploration, as well as for drilling in engineering geology, shallow oil, natural gas, and other fields. It can also be used for drilling surveys in railway, highway, bridge, water conservancy and hydropower, and tunnel engineering.
The drilling rig can be equipped with customized modules such as hydraulic high support legs, hydraulic chuck, and hydraulic main winch.
Product Parameters
| INDEX | PARAMETER |
| Total Weight | 7300kg |
| Machine Size (Transportation State) | 5600*2200*3000mm |
| Machine Size(Working Condition) | 5500*2600*8500mm |
| Drilling Angle | 35-90° |
| Mast Slip Stroke | 1200mm |
| BTW | 1400m |
| NTW | 1200m |
| HTW | 1000m |
| Power head lifting force | 360kN |
| Power head propulsion force | 180kN |
| Power head rotation speed | 0-1400rpm(stepless speed regulation) |
| Maximum turning torque of power head | 2600N.m |
| Feeding stroke of power head | 3500mm |
| hydraulic system | Main Pump：115ml/r.32MPa, |
| Auxiliary pump：80ml/r.25Mpa |
| cooling system | Water cooling+Independent air cooling |
| power system | Six cylinder engine 129kW/2400rpm |
| HydraulicWinch rope capacity | 1200m(6mm Wirerope) |
| HydraulicWinch force | 24kN |
| HydraulicWinch speed | 110m/min |
| Mud Pump | BW100/BW160(Optional) |
| Track | 9T Steel Track/400mm*43 |
| Maximum Angle of climb | 30° |
| maximum travel speed | 2km/h |
