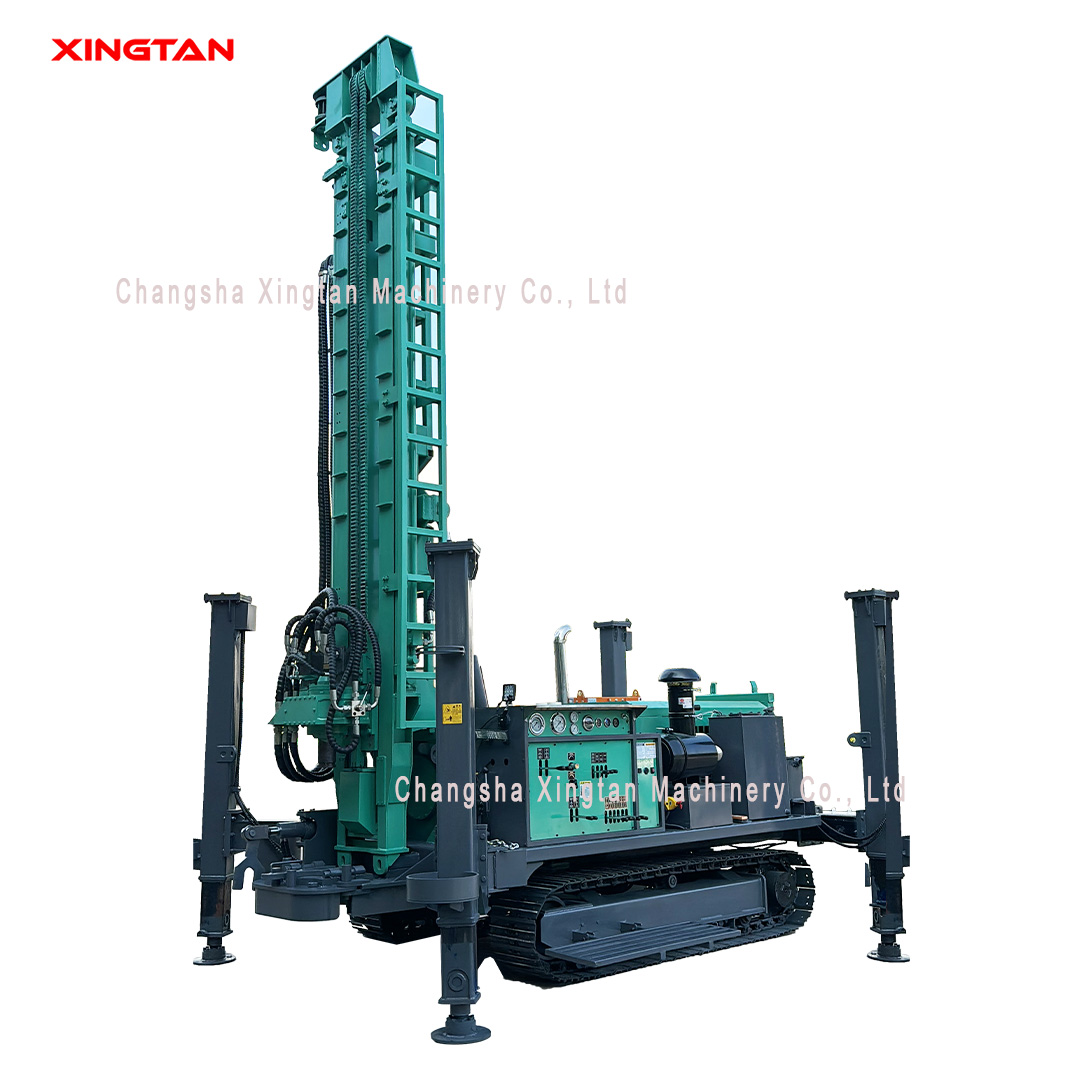

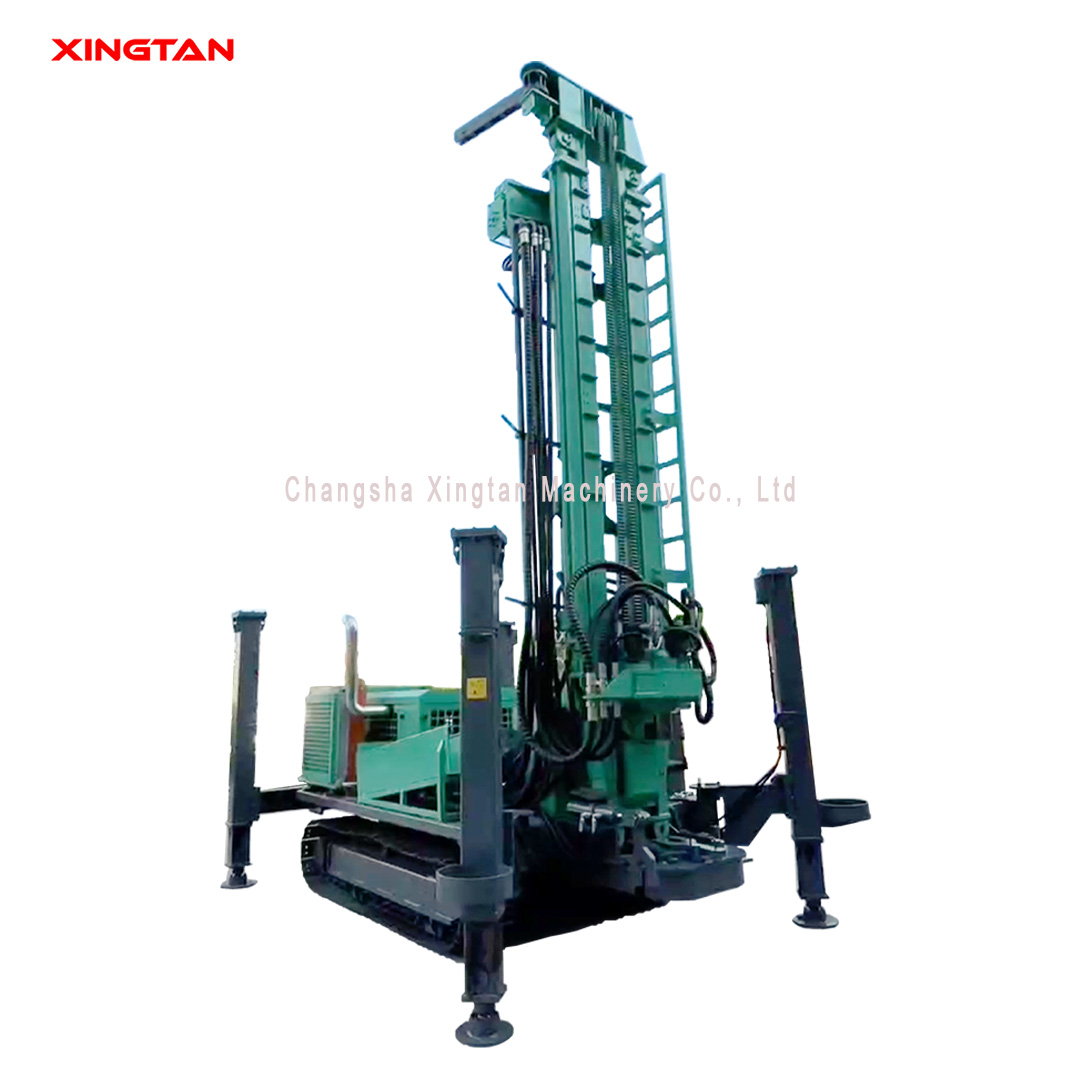

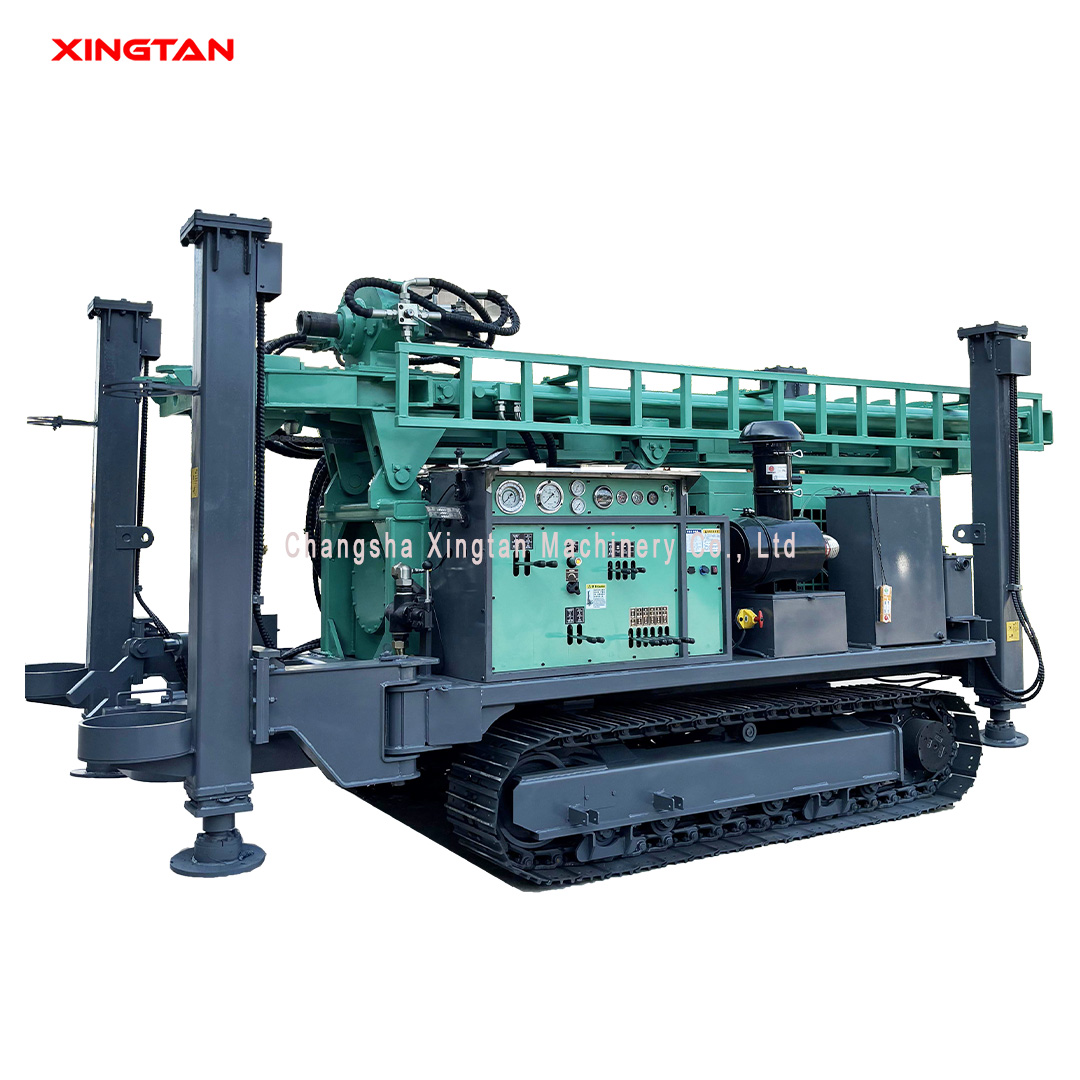

QY-600 water well drilling rig is a lightweight, efficient, and multifunctional drilling equipment. It is mainly suitable for drilling water wells, agricultural irrigation wells, and other purposes, especially for water intake projects in mountainous areas and rock formations. This drilling rig adopts a new hydraulic technology, which is equipped with a high torque hydraulic motor for rotation and a large cylinder diameter hydraulic cylinder for propulsion and lifting. It can be used with ordinary alloy drill bits and other drilling tools for rotary drilling; Conventional ball toothed drill bits are used in hard rock formations for impact rotary drilling and high-speed drilling; Paired with air compressors and pneumatic down the hole hammers, in unstable formations such as gravel, the use of casing drilling tools can be used for casing drilling to form holes.
Product Parameter
| Drilling capacity | Drilling depth | 600m |
| The hole diameter | 140-400mm |
| Drill pipe diameter | 76/89/102/114 mm |
| Drill pipe length | 1.5/2/3/6 m |
| The penetration efficiency | 12-40 m/h |
| Drive head | Swing torque | 8000-12000 N.m |
| Swing speed | 40-160 rpm |
| One-time advance length | 3.3/6.6 m |
| Rig lifting force | 300 KN |
| Lifting capacity | 150 KN |
| Rapid rise speed | 20 m/min |
| Fast feeding speed | 40 m/min |
| Power Unit | Engine Model | Weicai |
| Rated power | 129KW |
| Tool winch capacity | Lifting force | 20KN |
| Air compressor | Using air pressure | 1.7-3.5 MPA |
| Air consumption | 17-42 m³/min |
| Equipped with hammer | Medium and high wind pressure series |
| Crawler chassis | Walking speed | 2.5km/h |
| Max Climbing angles | 30° |
| Dimension | Transport | 6300*2100*2500mm |
| Working | 4000*2900*6800mm |
| Weight | 9.2T |
